Extracting the elusive TMS32010 mask ROM

In the late 1970s Texas Instruments made the TMS5100 for the Speak and Spell. This special purpose processor could quickly do math operations required for speech synthesis. This is an early form of Digital Signal Processing (DSP) where code creates signal digital filters instead of using discrete components like capacitors and resistors. Following the success of that project they looked into higher performance DSP architectures which resulted in the TMS320 family being released in the early 1980s.

This was welcome news to game designers of the 1980s. Arcade machines require a wide variety of high performance audio and video processing. Unfortunately CPUs of the day were relatively slow meaning  cutting edge games required expensive custom logic made with large circuit boards or custom ASICs. DSPs introduced a new option by focusing on high performance math operations rather than traditional code execution.

Specifically the first generation TMS320 included the TMS320M10, a version with 3K bytes of mask ROM. This was used in a few Toaplan games like Flying Shark (decap G72, G210) and Kyukyoku Tiger (also known as Twin Cobra, decap G71):

More info can be found here. Anyway, here's a TMS320M10 die shot:

Close up of the logo:

Note the die part number is "32010C", not "320M10" as in marketing material. This is similar to how "TMS5100" is a marketing name but its internally a "TMC0280." Also note the second line of text, diffusion on the silicon substrate, matches the package:

Checking out the ROM area we vaguely see bits but with poor contrast:

Zooming in helps a little, but its still pretty hard to read:

Looks like it might be a diffusion ROM and delayering to silicon substrate will improve contrast. This is consistent with D70015, presumably the mask ROM ID, being encoded in diffusion. Die after delayering:

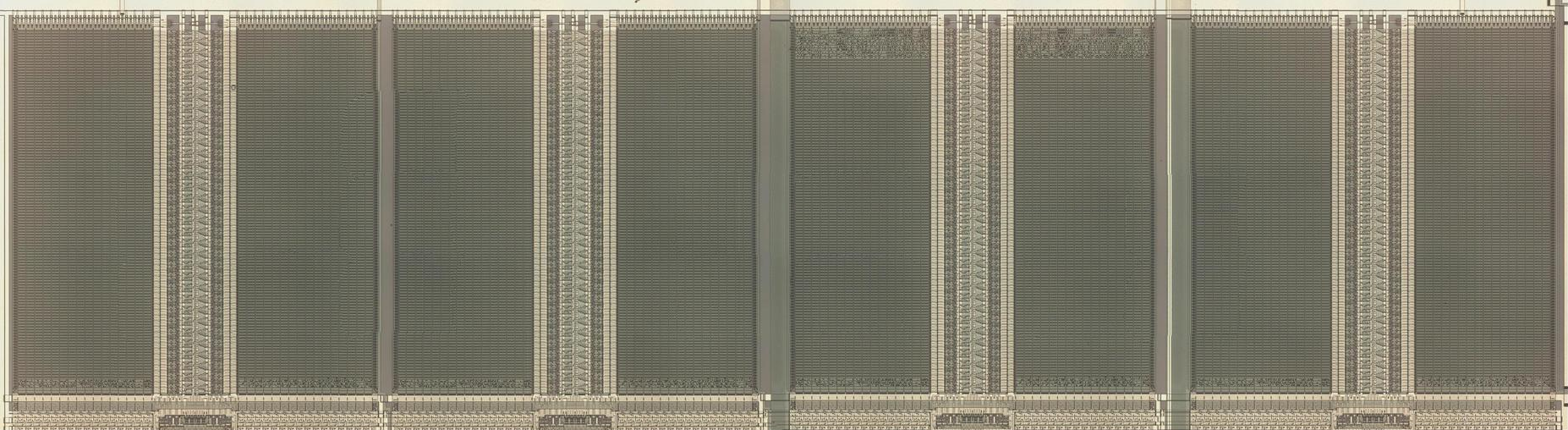

The ROM is now way easier to read:

Now we can also see the contrast issue: the polysilicon and metal was mostly overlaid on the diffusion lines above, hiding most of the detail. Now that the polysilicon and metal is removed the bits can be resolved clearly.

Next the ROM photograph is converted into a 2D bit array so we can figure out the bit order. Usually bit order is very linear, such as grouping bits into columns with the least significant bit at the left and most significant bit at the right. Consider a 4 bit CPU with this ROM layout:


  • B0 means bit 0, the least significant bit and B3 is the most significant bit
  • Bits are grouped into columns
  • Each bit column starts upper left, scans right, and then wraps around to the next row

Lets say your ROM is typed as:

01 10 10 10
00 10 01 11
Where spaces have been added to emphasize the bit columns and the first word is highlighted in bold. Using the decoding scheme above results in the following 4 bit words:
  • 0xE
  • 0x1
  • 0xA
  • 0xC
Unfortunately there are many variants on this type of scheme and it may not be obvious which scheme is used in this particular type of memory. However  there are a couple of ways to narrow it down:
  • Reverse engineer logic and deduce the scheme from first principles
  • Make educated guesses
The first always works, but can be a lot of effort. Instead, we usually rely on the fact that most architectures have a few regular patterns that we can look for. For example, here are a few TMS32010 binaries disassembled:

000: f900 0010  b    0010h
002: f900 00af  b    00AFh
010: 7f8a       rovm
011: f500 0013  bv   0013h

000: f900 0004  b    0004h
002: f900 0d96  b    0D96h
004: 7f81       dint
005: 7f8a       rovm

000: f900 00d7  b    00D7h
002: f900 0642  b    0642h
0d7: 7f8b       sovm
0d8: 6e00       ldpk 0
It looks like a pretty good guess for the first word and third word is 0xF900. Let's use this as a heuristic to determine if we have the correct memory layout.

It's also worth mentioning we don't yet know the bit polarity: does a squiggle in the image mean it's a 0 or a 1? One way to intuitively deal with this is to think about things more in terms of bit transitions or hamming distance than the actual values. If using a program to extract the bits we usually try both polarities and see which works better.

Unfortunately we tried a few simple layouts and didn't see 0xF900's coming out. Fortunately Nathan Gilbert volunteered to help and had several major contributions. First, he digitized all three ROM photographs into bits in a .txt file. The bits are then compared between chips which shows where common data is. In particular this gives us a hint which side of the memory layout the initial branch instruction, 0xF900, might be.

Nathan then poured over the bits in great detail but had trouble finding a simple solution. Next he looked at our die shots to see if they provide hints. For example, they show how large memory blocks are and may show things like unusual bit ordering on data buses.

Unfortunately we were still struggling. But we thought we might have a silver bullet: a previous project had decoded the BSMT2000 audio chip, a TMS320C15. Maybe we could dig up this data, study the encoding, and use that to decipher the order?

We found the binary and bsmt2000 scanning electron microscope (SEM) images from Dr Decap:

Unfortunately we didn't find any info on the bit ordering or the intermediate photograph typed bits, but having the final binary and the source image is a good starting point nonetheless.

Zooming in on some bits:

Where bits are represented by contacts shown in bright white. But that's a problem: TMS32010C is a diffusion ROM while TMS320C15 is a contact ROM. This means it may not help decoding TMS32010C.

First, you can figure out high level structure without knowing the exact data. For example, what is the relationship between the top and bottom memory blocks? There are a few ways they could structure this but generally the most simple is to put memories in parallel. This means half of the 16 bit word comes from the top and half from the bottom memory structure. This is a good baseline assumption and turns out to be true for this chip.

Next, the specific column order needs to be figured out. Nathan dug in and matched the reference words (0xF900) to find the bit order roughly looks like this (simplified example with 2 bits):

This ordering is a bit more complicated than previous as column layouts are in mirrored pairs rather than all being identical. Good to know, but unclear if anything that will help with TMS32010C.

Going back to TMS32010C, let's summarize clues we have so far:
  • 16 bit words
  • Expect first word to be 0xf900
  • Know possibly related memory layout
  • Hint which side of the die is address 0
  • Have several firmware files to try
And then a breakthrough: Nathan notices that decaps 72 and 210, although very similar, have some code inserted in the middle, shifting words to a higher address. This is a crucial key: we have an example of what it looks like to move data to a higher address.

After some serious permuting, intuition, and a little binary magic, Nathan discovers that bytes are permuted according to a table like "7, 2, 6, 3, 5, 4, 0, 1". It appears to be related to some logic in the address decoder itself:

Where we find a very similar, but not identical table. This pattern is repeated all along the bit lines and is likely muxing them in roughly this fashion.

Both the row and column depend on this table, so it makes for a somewhat involved decoding. We tossed around some engineering ideas for why this table might make sense (ex: similar to Gray encoding => may share address lines), its unclear if this is an optimization or an obfuscation strategy.

Anyway, nice! Let's take a look at 71 to verify we have a real binary:

000: f900 0019 b 0019h 002: f900 0020 b 0020h ... 020: 7f81 dint 021: 7000 lark AR0,00h
We see jumps to instructions like dint like seen before, so this seems like a plausible binary. Huzah!

Special thanks to Nathan Gilbert for processing the photographs into binaries! In our next post we'll discuss how we extracted TMS320C5X data using a combination of electronic and decapping techniques.

Enjoy this post? Please support us on Patreon or follow us on TwitterNote: with the Indiegogo campaign over we unfortunately don't currently have a way to accept one time donations.

Wednesday, September 16, 2020

Macroprobing a fried Dardomania EPROM

Source (actual unit)

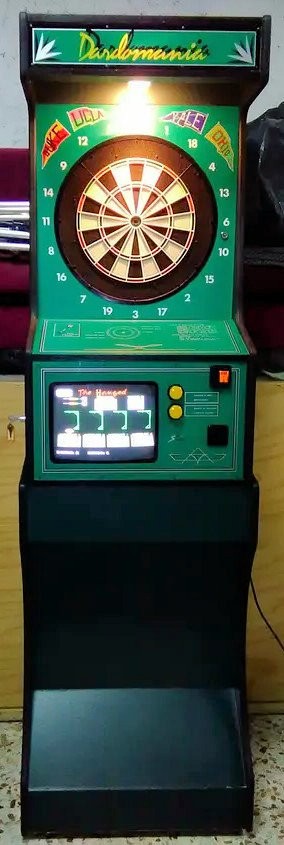

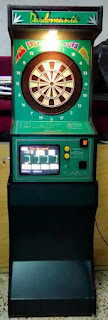

Dardomania is a dart throwing game from Sleic. Main circuit board:

There are a few EPROMs seen with stickers. Unfortunately one of the EPROMs, marked in purple, is behaving erratically. Upon closer inspection:

The VCC bond wire is broken. Unfortunately it's not just snapped but rather has balled up. This implies it melted from excessive current and the die itself may be damaged. If this is the case the data may still be there but it would beyond our current capabilities to extract.

So how can we show the chip is still salvageable?

  • Run small test currents through I/O ESD diodes to verify they still function. This will help find gross damage on the chip by verifying bond wires and ground is intact
  • Inspect die, especially around the melted wire, for damage
  • Power VCC, carefully monitoring current draw

Fortunately VSS is still intact which makes running the ESD diode test simple. It produced promising readings indicating most I/Os at least were intact.

Next we sawed off the top of the EPROM to reveal the bare die:

We used a diamond saw to cut the majority of the window away. The chip is soldered into a socket, filled with nail polish to protect the die, and then the center is mechanically sheared off:

Unfortunately this caused 2 more bond wires to come loose and now three need to be reattached. This is believed to be caused by the new procedure using a socket. The vise didn't grip the package as firmly and led to some slop during shearing. We believe using the socket is the right direction (strengthens pins during and after shearing) but in the future need to grip the package directly even if it's socketed.

Unfortunately aluminum wires have a non-conductive oxide surface that makes repairs more difficult. For example, while silver conductive epoxy bonds well to gold it doesn't to aluminum. This leaves two primary options:

  • Use wire bonder to place new wires
  • Microprobe the pads

Wire bonders are finicky and if you aren't careful you can damage the chip. So we elected to probe the pads instead of attaching new wires.

Anyway, we inspected the die and didn't see anything alarming. For example here is what damaged I/O can look like:

With this out of the way, next step is to power up the chip. We probed VCC and put the EPROM into a high end chip reader that monitors for excessive current. We omitted probing the other two pins as they were just address/data. Somewhat to our surprise the read went normally: no overcurrent and plausible looking data came out!

So next we added a few more probes to get the other pins connected. This process is relatively straightforward as bond pads are relatively large ("macro") vs traditional microprobing.

Unfortunately data did not come out reliably. Fortunately data analysis indicates read errors are closer to random noise than fundamental issues. We repositioned the probes for better contact and data began reading reliably! We compared the new stable result to older reads and found all older reads are just a few bits away from the new stable version. Success!

Finally preliminary inspection of the EPROM data vs the others in the set looks reasonable. Testing on real hardware is pending and we'll post a small update once its verified.

In other news we have also started more serious microprobing but a lot more effort is required before we get usable results. We also extracted some PICs:

These include:

  • Gaelco F3 Hardance (PIC16C56)
  • PUZZLE ME (PIC16C54)
  • Magic Card Export 94 (PIC16C54)
  • Magic Card Wien (PIC16C54A)
  • Bingo Roll / Turbo Bingo (PIC16C54)
  • Mystery chip "unkte06" (PIC16C56)

We also tried laser glitching some PIC16F84s but were unsuccessful. We've had success in the past and believe this is a test setup issue. We'll retry in the near future with a different laser.

Enjoy this post? Please support us on Patreon or follow us on TwitterNote: with the Indiegogo campaign over we unfortunately don't currently have a way to accept one time donations.

Saturday, April 18, 2020

Help us preserve the original Furby!

Update 2020-04-27

Given submissions have tapered off we've taken down the server. Thanks to all that have contributed so far! We'll let everyone know when more information is available.

Update 2020-04-26

Thanks to all of those who have contributed! We've been running for about a week, and results have leveled off around 80% complete and currently around 84 complete%. We've now have some statistics and a few proposals.

Some basic statistics:
  • Pages: 297
  • Lines: 19510
  • Page submissions: 744
  • Line changes (roughly): 10297
  • Change 2/3 agree: 9191
  • Can't 2/3 agree: 1106
Of those 297 pages, we have all of them with at least two submits and about 50% have three submits. These results were combined to result in about 50% of lines flagged for adjustment. Of those suggestions, about 89% of agree. Based on existing data, getting all 3 sets of challenges completed will reduce that to about 600 still requiring manual review.

A few more advanced heuristics were also tried (ex: partial line matching, weighting user results based on how much we trust their results), but ultimately wasn't convinced any of these are the right approach.

So, where does this leave things? Two main options are being considered:
  • Push the annotated source to github or gitlab as is. We estimate that it would take someone about 6-12 hours to fix, which is not intractable. Default would have been the furby-source repository on github, but they have stopped responding
  • Restart the crowdsource server using the best result with annotated conflicts. Users would need to delete the extra lines and submit. However, we suspect users need a break, so at a minimum we would probably hold off a few months to regain momentum
Note we suspect additional fixes will be required upon eventual manual review, whichever path is taken. Generally the first option seems like the best. A few dedicated users could knock this out fairly quickly without too much coordination. If we get a few volunteers (or one very dedicated volunteer), we'll figure out where to push this and move the project forward. Ideally one of these people would also be interested in coordinating other community contributions.

So we're asking if people are interested in the first option and we'll likely default to the second if we don't get traction. Please let us known here in the comments or on Twitter!

Update 2020-04-20

Higher quality .pngs have been swapped in after reports that compression is swapping letters (!). Special thanks to Video Game Preservation Collective for the above image! The old set was from the text annotated version while the new set is believed to be the original scan. Unfortunately these images are about 5x larger, but should improve accuracy.

Also now we've done a very crude analysis of the existing submits and used them to make a quick guess at better default text to present. This effects about 85% of entries. So going forward you'll typically get higher quality defaults. But please still be attentive and look for errors!

There have also been a few backend tweaks, notably favoring showing pages with fewer submissions. However these generally should not be visible externally.

Update 2020-04-19

We're up to 197 submissions! Thanks to all of you that have posted so far! We need to meet a minimum of 297, so we're making great progress. Our goal is to get 3 submissions to help correct errors, for a total of 891.

We will briefly bring down the site for maintenance at 2020-04-21 6:00 AM. We will use this window to improve the default text based on submissions so far. This should make challenges much easier as mostly you'll only need to do small corrections instead of large edits. We will also fix the overall progress indicator, which currently says 1485 required, but it should be 891.

Once again, thanks for your help and please let us know if you have any feedback!

Micro update: the progress indicator fix has been pushed out (it was not necessary to bring the server down)


The Furby is an iconic talking toy from the late 90s. A couple of years ago scans of the original Furby source code were acquired. Unfortunately the scans are noisy and automatic image to text conversion is difficult. So we're asking the community to help preserve game history by proofreading computer generated transcripts. Generating a proper copy of the Furby source code will be enormously valuable to understanding how it works!

Project TLDR:
  • Complete using your web browser
  • You need a large screen (laptop or desktop)
  • Scanned image at left, noisy text interpretation at right
  • Fix errors in the image to text translation and submit
  • Remove headers and footers (ex: "Page 6", "A-121", "Diag7.asm" )
  • Unreadable: put best guess if possible, or random characters as last resort (will flag for review)

Although the crowdsourcing system wasn't a good fit for Great Swordsman, it spurred some conversations on what it could be used for. It has been revived and adapted to work on improving pdf image to text conversion.

Join the effort by signing up for an account! If you had an account on the previous TGP project, it likely is still available. Additional instructions are available after creating an account. If you have some time, please try a few images!

Finally, the person who gets the most pages accepted (ie with acceptable accuracy) will get early blog access for 3 months! Note however you must provide your e-mail address to qualify so that we can actually send it to you.

Sounds good? Sign up here! Instructions are available after logging in.

Note: due to various issues we are unable to split the pages into smaller tasks. So the images are relatively large and this is best completed on systems with a large screen such as a laptop or a desktop. So apologies if you only have mobile, but you may not be able to help with this specific project.

Special thanks to Andrew Gardner for writing the original tool and John McMaster for recent modifications!


We'd also love if you have suggestions for improving the work flow. These are things already on our mind:

Q: What happened after the last crowd sourcing project? (Fujitsu DSPs / TGPs)

A: Post processing took a while, but it ultimately led to massive improvements on how well the community understands these games. However we've been doing a poor job at communicating those results and still need to write a post about it. See for example this MAME post which mentions recovering "...the Sega Model 1 coprocessor TGP programs for Star Wars Arcade and Wing War, making these games fully playable."

Q: Can you make the challenges smaller?

A: Not easily. The pages aren't well aligned, we'd need to both figure out correct straightening and cropping

Q: Can you align the text editor to the images better? Maybe rich text features like find and replace?

A: While the chip community can unlock the secrets of the micro universe, we can't code websites for beans. Really it's a miracle that the site is running at all. If you can help with improving text entry, please reach out! FYI its written in Python/Django and could use some cleanup. If you haven't been scared off, more info is here

Q: What happens after its captured?

A: First we'll post process to remove errors. After that we'll use the CPU manual to make a special 6502 assembler to create a binary. Ideally we'll also combine this with the Furby 70-800 ROM microscope images (sample above) at some point.

Q: Where did the source come from?

A: Not sure exactly, but some information is available at the Internet Archive

Q: Can I edit my result after submission?

A: It is not possible to modify it at this time. But don't worry, most of the time we can detect errors by combining a few results.

Q: Can you reset my password?

A: Yes, but it requires manual admin intervention. We suggest creating a new account if you aren't really tied to your old one

Q: Isn't that Furby image for the Furby 2012, not the original Furby?

A: Maybe... Actually we have a 70-800 image now


More questions? Type them below, or reach out to us on Twitter. Thanks again for your help!
